BTH3300 Series
Wireless 2D Handheld Scanner for Efficient Data Capture

Professional Performance Meets Maximum Mobility

The BTH3300 Series is your ideal solution for upgrading data collection across complex or large workspaces. Unlike traditional corded scanners, this device leverages stable long-range Bluetooth (Class 1) connectivity, providing your team with unmatched freedom to move across large warehouse aisles, retail floors, or manufacturing assembly lines. Equipped with a professional 2D area imager, the BTH3300 guarantees fast, accurate reading of all common 1D/2D barcodes, even from low-contrast labels or mobile phone screens. Its lightweight and ergonomic design ensures maximum operator comfort during long shifts, making it a high C/P investment for businesses seeking efficiency and the ultimate Value on the Go.

BTH3300 Angle View1

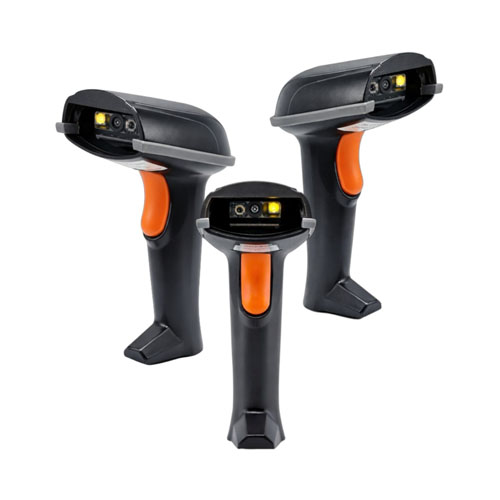

BTH3300 Angle View2

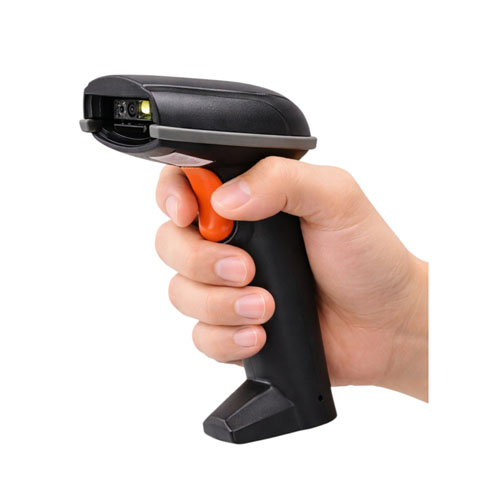

BTH3300 Angle View3

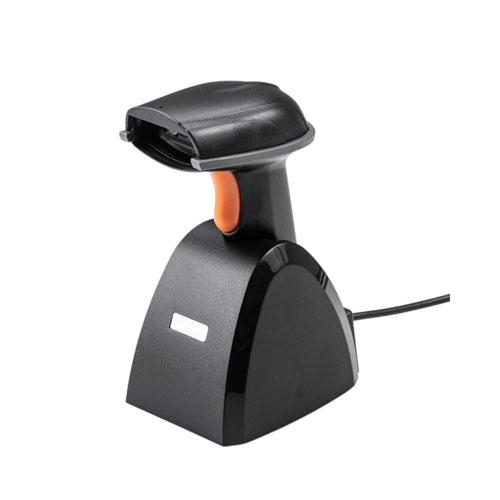

BTH3300 Angle View3
BTH3300 Angle View3

Key Features : Speed, Comfort, and Reliable Data Flow

Reliable Long-Range Wireless Freedom (Bluetooth Class 1)

Leveraging Bluetooth Class 1 technology, the BTH3300 delivers an extended and reliable operating range. This superior connectivity ensures your mobile workflow is continuous, significantly boosting productivity and eliminating short-range limitations.

Professional 2D Area Imager for Versatility

The high-performance imager ensures rapid and accurate data capture. It effortlessly reads 1D/2D codes, including those on digital screens, making it ideal for ticketing, mPOS, and modern inventory.

Lightweight Ergonomics and Clear Feedback

Designed for operator comfort, the well-balanced structure minimizes fatigue during prolonged shifts. Clear confirmation is provided via LED lights and an audible beeper, ensuring scanning accuracy for high-volume routines.

Plug-and-Scan with High-Performance Cradle

Features a simple plug-and-scan setup for immediate deployment. The included cradle serves dual duty as a charger and a dedicated Bluetooth receiver, ensuring robust Class 1 connectivity and seamless integration with any PC host system.

Optimized Power Management for Extended Shifts

Engineered for efficiency, the low power consumption design ensures the device sustains long work cycles on a single charge. This maximizes operational uptime and minimizes the need for frequent recharges during peak periods.

Batch Mode (Optional) for Data Security

(Available on BTH3300UM and BTH3300VM) When offline or outside Bluetooth range, onboard memory stores data internally. Data is automatically uploaded once connectivity is restored, guaranteeing complete data integrity.

Technical Specifications

Model NameBTH3300J Series
BTH3300JRUSPP, Model without Memory
BTH3300JHUUSB HID, Model without Memory
BTH3300JHMUSB HID, Model with 1MB Memory (able to save more than 65,000 sets EAN-13 barcodes)
BTH3300JVMUSB-Virtual COM, Model with Memory
Performance
Light SourceWhite LED
Aiming LEDRed Light: 625nm ± 3nm
Depth of Field13 mil UPCA: 320 mm
SensorCMOS (640×480 pixels)
Best Resolution1D (4 mil): Code 39 (3 mil Readable)
2D (5 mil): PDF417
Print Contrast≥ 30%
IndicatorsLED & beeper
Supported Symbologies1D: Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, ISBN/ISSN, Code 93, Code 11, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded
2D: PDF417, QR Code, Micro QR Code, DataMatrix, Aztec
InterfaceUSB HID, USB-Serial
Electrical
Input Voltage5 V/DC ± 5%
Operating Current< 320 mA
Radio RangeBluetooth V5.2 (Class 1): up to 70~100m Line of Sight (Range Varies by Environment)
RF Frequency2.4 GHz
Battery Type3.7V, 3150mAH, Rechargeable Li-Ion Battery Pack
Scans per ChargeMore than 10,000 scans when fully charged
Charge Time4 ~ 5 hours
Physical

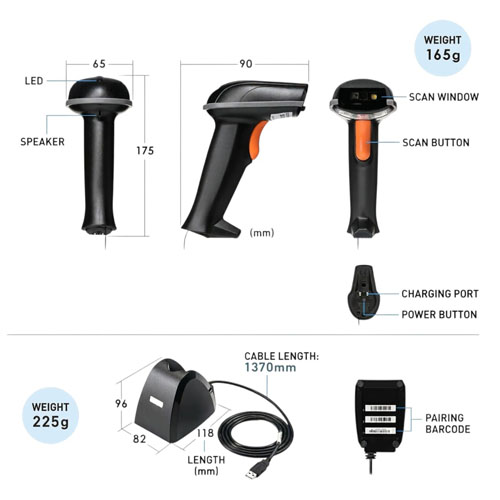

Dimensions (LxWxH)(Scanner) 90 x 65 x 165 mm
Weight(Scanner) 165 g +/• 5 g
(Cradle) 225 g +/• 5 g
Environmental
Operating Temperature-5°C to 50°C
Storage Temperature-15°C to 65°C
Operating Humidity5% to 95% relative humidity, non-condensing
Ambient Light0-100,000 lux (total darkness• bright sunlight)
Decode Zone Measured at 600 lux with standard barcodes (PCS ≥ 90%). Tolerance: ±10 mm. Actual DOF may vary by barcode quality and ambient factors.
4 mil Code 39 25 ~ 100 mm
5 mil Code 39 25 ~ 135 mm
13 mil EAN 1320 ~ 320 mm
6.67 mil PDF41730 ~ 130 mm
10 mil DataMatrix10 ~ 135 mm
20 mil QR Code5 ~ 240 mm

Applications & Benefits

The high mobility and reliability of the BTH3300 series make it a powerful tool for enterprises to optimize efficiency and reduce costs.

MarketSpecific Use CaseBenefit
Retail
  • Mobile Point-of-Sale (mPOS)
  • Real-time Stock Verification on the Floor

Increased Sales & Speed:
Fast 2D scanning speeds up mobile transactions and price checks, improving customer experience.

Benefit:
Enables staff to verify inventory and complete sales transactions anywhere in the store.

Warehousing
  • Cycle Counting and Physical Inventory
  • Receiving and Put-away Processes

Maximized Data Integrity:
Batch Mode guarantees that inventory counts are recorded accurately, even in large facilities with poor Wi-Fi coverage.

Benefit:
Reduces manual data entry errors and lowers the Total Cost of Ownership (TCO) associated with inventory inaccuracies.

Logistics
  • Cross-docking and Parcel Sorting
  • Proof of Delivery (POD) scanning

Uninterrupted Operations:
Long-range Bluetooth maintains connectivity over large staging areas, preventing workflow stalls.

Benefit:
Drivers can quickly scan parcels for routing verification, speeding up processing and delivery times.

Manufacturing
  • Work-in-Progress (WIP) Tracking
  • Asset and Tool Tracking

Enhanced Process Visibility:
Rapidly scanning codes at various checkpoints on the assembly line provides accurate, real-time tracking of components.

Benefit:
Improves line efficiency and provides better compliance documentation for internal audits.

Healthcare
  • Patient ID and Medication Verification
  • Asset Tracking for Mobile Medical Equipment

Improved Safety & Mobility:
Accurate reading of small barcodes on patient wristbands and medicine packaging enhances medication safety.

Benefit:
Wireless operation allows staff to move freely between rooms, improving response time and patient care quality.

Invest in Efficiency, Not Complexity

The BTH3300 Series is the smart investment for your operation. It provides the professional performance required for demanding tasks like inventory control and POS, but without the high capital investment or complexity of traditional mobile computers. By choosing BTH3300, you are ensuring your team benefits from high mobility, maximum comfort, and reliable data integrity, all while achieving the most cost-effective path to digital maturity. Achieve Value on the Go today.
