HHS9900 Series
HHS9900 Series Industrial Long-Range 2D Scanner for Warehousing & Logistics

Maximize Forklift Efficiency with 6-Meter Extended Range Scanning

The HHS9900 Series is engineered to thrive in demanding industrial settings. Designed for forklift operators and high-rack inventory, this wired 2D imager captures 100mil barcodes from up to 6 meters away. Featuring an IP65-rated design and engineered to withstand 1.2m drops, it is built to survive daily impacts and environmental hazards. This ensures robust durability while significantly improving operational safety and throughput.

HHS9900 Series Angle View1

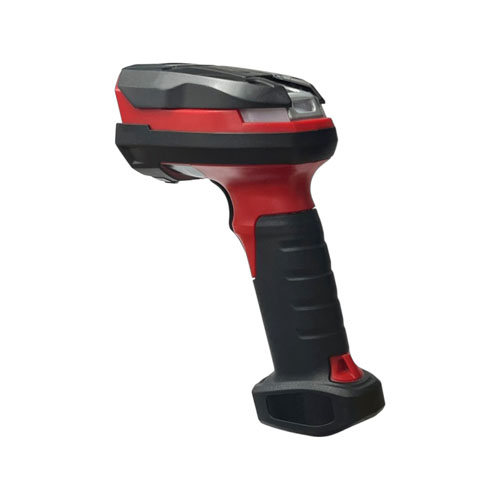

HHS9900 Series Angle View2

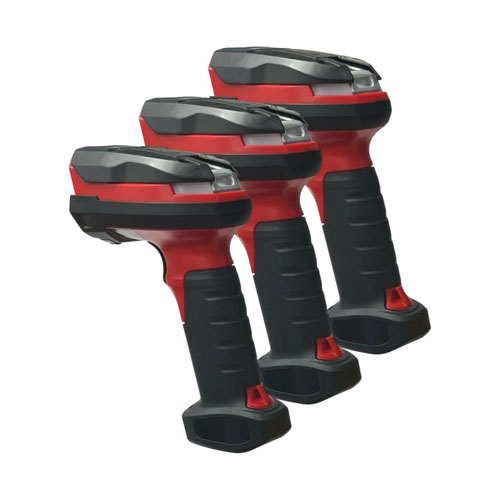

HHS9900 Series Angle View3

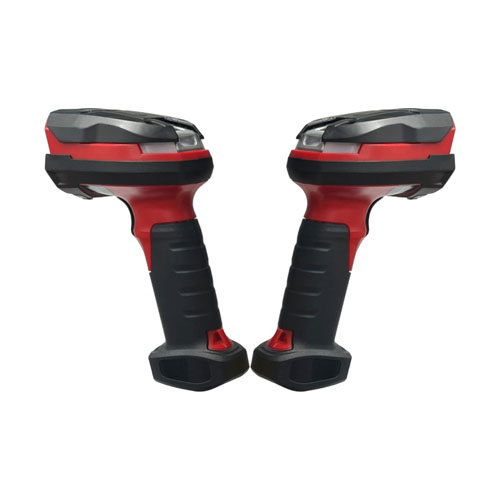

HHS9900 Series Angle View4

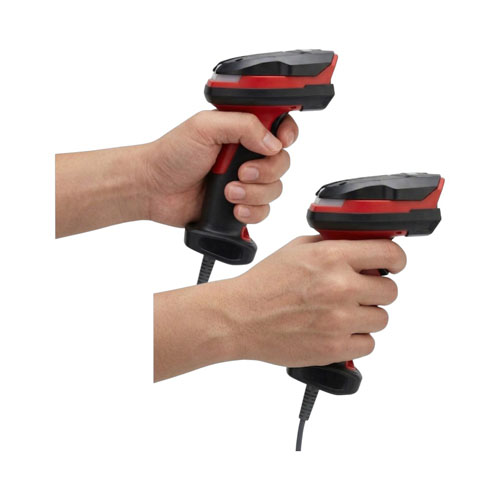

HHS9900 Series Angle View5

Key Features: Extreme Range, Industrial Durability & 2D Precision

6-Meter Long-Range Scanning

Captures 100mil barcodes from 6 meters (20 ft) away, enabling safe "pick-from-seat" forklift operations without climbing.

Rugged IP65-Rated Design

Sealed against dust and water splashing. Engineered to withstand multiple 1.2m drops to concrete, ensuring reliability in harsh conditions.

Advanced 2D Imaging Technology

Equipped with a superior 2D imager to capture both 1D and 2D codes (like QR Codes) on labels or digital screens, surpassing traditional laser scanners.

Ergonomic Grip for Intensive Use

Features a balanced, gun-style design to minimize hand fatigue. Perfectly suited for continuous, high-volume scanning during long work shifts.

Optimized for Supply Chain

Tailored for logistics, it easily reads dirty or damaged barcodes, ensuring smooth data capture from receiving docks to shipping lanes.

Technical Specifications

Model NameHHS9900 Series
DescriptionRugged 2D Handheld Scanner
Performance
Light SourceWhite LED
Aiming LEDRed Light
Depth of Field13mil EAN 13: 173cm
SensorCMOS (1280 x 1024 pixels)
Best Resolution1D (4mil): Code 39
2D (6.67mil): PDF417
Scan AngleTilt: 360° / Pitch ±50° / Skew ±50°
Print Contrast≥ 25%
IndicatorsLED & Beeper
Supported Symbologies1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, 2 of 5 Industial, 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post
2D: PDF417, QR Code, Micro PDF417, Micro QR Code, Data Matrix, Aztec
InterfaceUSB HID/ USB Virtual COM
USB-Serial (by Request), RS232 (by Request)
Electrical
Input Voltage5V/DC ± 5%
Operating Current< 510 mA
Radio Range-
RF Frequency-
Battery Type-
Scans per Charge-
Charge Time-
Physical
Dimensions (LxWxH)130.2 x 76.9 x 192 mm
Weight356g ± 5g (with Cable)
Environmental
Operating Temperature-5°C to 55°C
Storage Temperature-15°C to 65°C
Operating Humidity5% to 95% Relative Humidity, Non-Condensing
Ambient Light0-100,000 Lux (Total Darkness - Bright Sunlight)
Decode Zone Note: DOF measured under 800 lux (Office) with standard barcodes. Tolerance: Near ±3 cm / Far ±30 cm. Performance may be affected by barcode quality and ambient conditions.
4 mil Code 39 -
5 mil Code 39 23 ~ 38 mm
13 mil EAN1312 ~ 168 mm
6.67 mil PDF41723 ~ 38 mm
10 mil DataMatrix 18 - 48mm
20 mil QR Code10 ~ 133 mm
100 mil EAN1358 ~ 698 mm
100 mil DataMatrix30 ~ 548 mm
100 mil QR Code30 ~ 518 mm
Model NameHHS9900J
DescriptionRugged 2D Handheld Scanner
Performance
Light SourceWhite LED
Aiming LEDRed Light: 625nm ± 3nm
Depth of Field13mil EAN 13: 320cm
SensorCMOS (640 x 480 pixels)
Best Resolution1D (4mil)：Code 39 (3mil: Readable)
2D (5mil)：PDF417
Scan AngleTilt: 360° / Pitch ±50° / Skew ±50°
Print Contrast≥ 30%
IndicatorsLED & Beeper
Supported Symbologies1D: Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, ISBN/ISSN, Code 93, Code 11, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded
2D: PDF417, QR Code, Micro QR Code, Data Matrix, Aztec
InterfaceUSB HID / USB-Virtual COM
USB-Serial (by Request) , RS232 (by Request)
Electrical
Input Voltage5V/DC ± 5%
Operating Current< 160 mA
Radio Range-
RF Frequency-
Battery Type-
Scans per Charge-
Charge Time-
Physical
Dimensions (LxWxH)130.2 x 76.9 x 192 mm
Weight352g ± 5g (with Cable)
Environmental
Operating Temperature-5°C to 50°C
Storage Temperature-15°C to 60°C
Operating Humidity5% to 95% Relative Humidity, Non-Condensing
Ambient Light0-100,000 Lux (Total Darkness - Bright Sunlight)
Decode Zone Note: DOF measured under 800 lux (Office) with standard barcodes. Tolerance: Near ±3 cm / Far ±30 cm. Performance may be affected by barcode quality and ambient conditions.
4 mil Code 39 25 ~ 100 mm
5 mil Code 39 25 ~ 135 mm
13 mil EAN1320 ~ 320 mm
6.67 mil PDF41730 ~ 130 mm
10 mil DataMatrix 10 - 135mm
20 mil QR Code5 ~ 240 mm
100 mil EAN13-
100 mil DataMatrix-
100 mil QR Code-

Applications & Benefits: Maximizing Efficiency in Warehousing & Logistics

MarketSpecific Use CaseBenefit
Warehousing
  • High-Rack ScanningScans upper-rack labels (up to 6m) directly from the forklift seat.
  • Bulk Pallet VerificationReads barcodes on heavy floor items from a distance without moving them.

Safety & Speed: Eliminates the need to climb ladders or dismount, reducing accident risks and cycle time.

Ergonomic Efficiency: Captures data instantly without physical strain, crouching, or moving heavy obstacles.

Manufacturing
  • Conveyor Belt TrackingScans parts on wide belts while keeping a safe distance from machinery.
  • Harsh Environment AssemblyOperates reliably in dusty, oily, or high-vibration processing zones.

Operational Safety: Protects workers from moving parts or hot zones while ensuring precise WIP tracking.

Rugged Reliability: The IP65-rated design prevents downtime caused by environmental contaminants or accidental drops.

Logistics
  • Damaged Label ReadingDecodes dirty, torn, or poorly printed shipping labels at the dock.
  • High-Volume SortingRapid-fire scanning at busy distribution centers without battery interruptions.

Zero Bottlenecks: Prevents manual entry delays caused by bad labels, ensuring smooth flow at receiving doors.

Continuous Throughput: Wired connectivity guarantees zero latency and 24/7 power for non-stop operations.

Extend Your Reach, Protect Your Investment

The HHS9900 Series Series redefines industrial scanning by combining the versatility of 2D imaging with extreme 6-meter long-range performance. Whether you need to scan a QR code up close or a pallet label on a high rack, this rugged scanner delivers. Backed by an IP65-rated design and engineered to withstand 1.2m drops, it is the reliable choice for businesses that cannot afford downtime. Choose the HHS9900 Series to empower your workforce with unmatched safety and throughput.
