PDC5500 Series Pocket 2D Data Collector
Compact Power for Mobile Inventory and Verification

Mobilizing Data Accuracy: Value on the Go, Reimagined

The PDC5500K Series is specifically engineered for professional environments where mobility cannot compromise data integrity. This device effectively bridges the gap between simple, one-way barcode scanners and expensive, oversized mobile computers, offering a smart, cost-effective solution for mobile workflows.

Its ultra-compact design and powerful 2D imager make it the ideal companion for workers performing tasks that require immediate feedback, quantity input, or file verification. The PDC5500K provides the flexibility of wireless Bluetooth operation combined with the reliability of a built-in memory terminal, ensuring that critical data is captured accurately, whether online or offline. This delivers significant Value on the Go by minimizing errors and maximizing worker efficiency across retail, warehousing, and logistics applications.

PDC5500 Angle View1

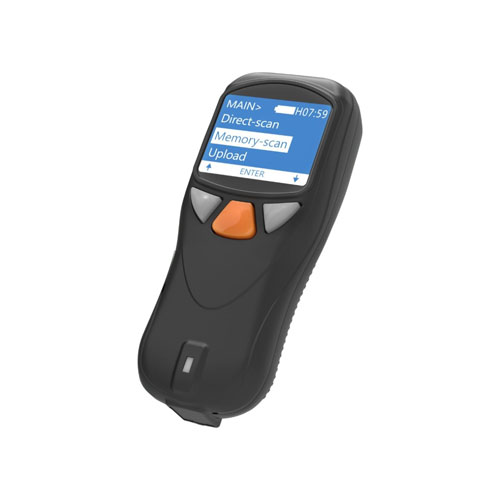

PDC5500 Angle View2

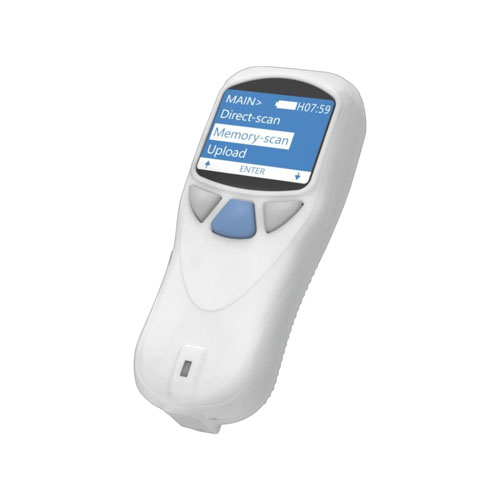

PDC5500 Angle View3

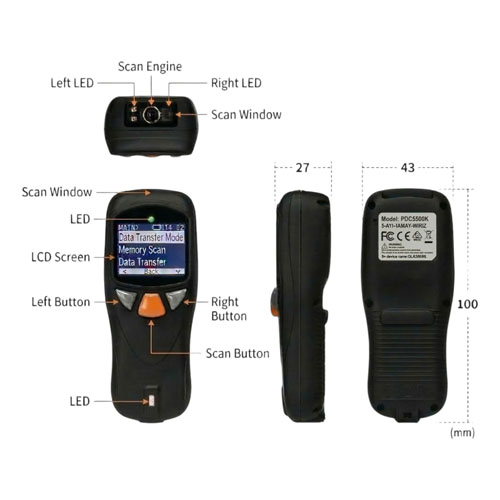

PDC5500 Angle View4

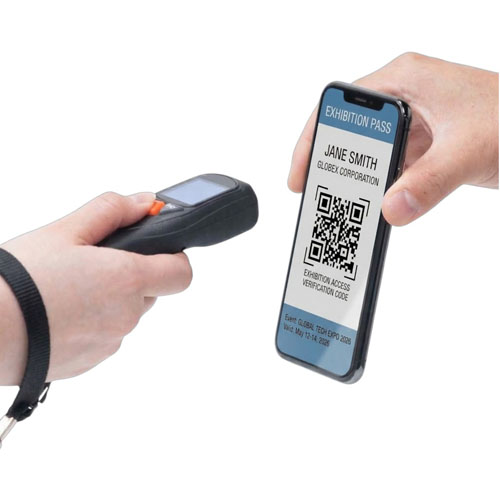

PDC5500 Angle View5

Key Features : Essential Features for Enhanced Mobile Workflows

Integrated OLED Display for Instant Verification

Unlike typical pocket scanners, the PDC5500K features a clear OLED screen. This allows operators to instantly view scanned data, verify item codes, check quantities, and receive feedback directly on the device, eliminating the need to constantly check a paired host device.

Batch Mode Memory for Data Loss Prevention

The built-in memory allows the PDC5500K to function as a data collector when out of Bluetooth range. Operators can store thousands of scans offline. Data is automatically uploaded upon reconnection, ensuring 100% data integrity during critical inventory or delivery tasks in signal dead zones.

Highly Versatile 2D Code Decoding

Equipped with a high-performance 2D imager, the device flawlessly captures virtually all 1D/2D barcodes, including high-density labels and complex QR codes. Its superior reading ability on glossy surfaces and smartphone screens is perfect for modern ticket and mPOS applications.

Pocket-Sized Ergonomics and Durability

At a mere 35g, its lightweight design ensures ultimate portability without compromising ruggedness (IP42 rating, 1.2m drop resistance). The compact form factor easily fits into a pocket or attached to a lanyard, minimizing physical fatigue during all-day mobile use.

Dual Wireless and Wired Connectivity

The PDC5500K offers seamless switching between Bluetooth for mobile freedom and wired USB connection for data transfer and charging. This dual-mode flexibility provides easy integration into existing infrastructure and charging stations.

Technical Specifications

Model NamePDC5500K
Product NamePocket Data Collector
Performance
Light SourceWhite LED
Aiming LEDRed Light : 625nm ± 3nm
LCD Panel (with back Light)Dots: 128 x 64 Viewing Area: 32 x 25 mm
Depth of Field13mil EAN13: 210 mm
Best Resolution4mil Code 39
Scan AngleTilt: 360° / Pitch: ±50° / Skew: ±50°
Print Contrast≥ 30%
IndicatorsLED & Beeper
Charge Mini USB port
Supported Symbologies1D: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, Codabar, Interleave 2 of 5, ISBN, GS1-128, MSI, GS1 Databar
2D: PDF417, QR Code, DataMatrix, Aztec
InterfaceBT Communication: HID or SPP Profile (for iOS/ Android Devices)
Electrical
Input Voltage5 V/DC ± 5%
Operating Current550mA
Radio RangeBluetooth V5.2 (Class 1): up to 70~100m Line of Sight (Range Varies by Environment)
RF Frequency2.4 GHz
CommunicationHID profile, SPP profile
Battery Type3.7V, 900mAh Rechargeable Li-Ion Battery Pack
Scans per ChargeMore Than 10,000 Scans When Fully Charged
Charge Time4 ~ 5 hours
Memory Capacity1MB (able to save more than 65,000 sets EAN-13 barcodes)
Power CableMini USB Cable
Physical
Dimensions (LxWxH)100 x 43 x 27 mm
Weight72 g ± 5 g
Environmental
Operating Temperature0°C to 50°C
Storage Temperature-10°C to 60°C
Operating Humidity5% to 95% Relative Humidity, Non-Condensing
Decode Zone Measured at 600 lux with standard barcodes (PCS ≥ 90%). Tolerance: ±10 mm. Actual DOF may vary by barcode quality and ambient factors.
4 mil Code 39 65 ~ 150mm
5 mil Code 39 55 ~ 170mm
13 mil EAN 1360 ~ 260mm

Applications & Benefits

MarketSpecific Use CaseBenefit
Retail
  • Price Look-Up (PLU) & Verification
  • Inventory Spot Checks
  • Mobile Point of Sale (mPOS) Item Scanning

Optimized Customer Experience:
Allows sales associates to verify prices and stock anywhere on the floor, reducing reliance on fixed terminals and improving service speed.

Warehousing
  • Cycle Counting of Small Parts
  • Stock Verification at Bin Location
  • Returns Processing

Enhanced Inventory Accuracy:
The onboard display confirms the correct item is scanned immediately, minimizing errors in counting and enhancing stock integrity.

Logistics
  • Small Parcel Identification
  • Proof of Delivery (POD) Tracking
  • Asset Tracking for Equipment

Improved Traceability:
Highly portable design allows drivers and couriers to quickly scan and verify items at the point of drop-off, securing the delivery chain.

Hospitality
  • Bar & Beverage Inventory Audits
  • Gift Shop Stock Management
  • Uniform/Equipment Asset Tracking

Efficient Asset Control:
Enables fast, off-site counting and tracking of high-value or numerous assets, improving accountability and reducing loss.

Healthcare
  • Patient ID Verification (Non-bedside)
  • Pharmacy Inventory
  • Small Medical Kit/Supply Tracking

Increased Operational Compliance:
Reliable 2D decoding ensures correct item tracking for pharmacy stock and supply chain management outside of critical bedside procedures.

The Ultimate Pocket Inventory Solution

The PDC5500K stands out as a high C/P value device, offering the critical functions of an inventory terminal—onboard memory and visual feedback—in a compact, cost-effective package. By providing immediate data verification right in the palm of the user's hand, it drastically reduces manual keying and data errors. Choose the PDC5500K to enhance your mobile operations with industrial-grade accuracy and the flexibility required for today's dynamic business environment.
