SKS2220 Series
The Versatile Fixed 2D Scanner for Kiosk & Retail Integration

Plug-and-Play Integration for Any Environment

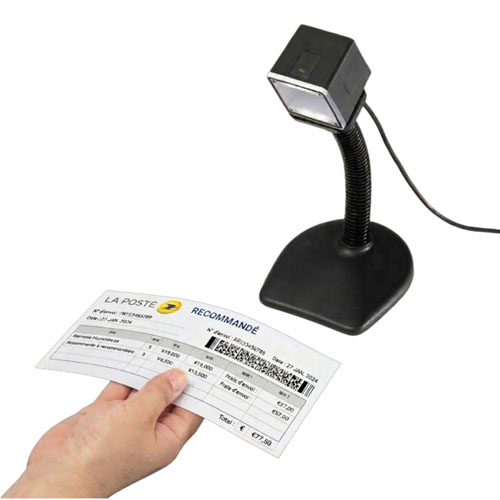

The SKS2220 Series (Model J/M) is a highly adaptable fixed-mount 2D barcode scanner designed to simplify the work of system integrators. Whether you are building a custom Kiosk, a price checker, or an automated vending machine, the SKS2220 offers a straightforward "plug-and-play" solution. Its smart design allows for easy installation in space-constrained environments, while its ability to read barcodes from both paper and mobile phone screens ensures seamless interaction for end-users. For applications requiring extra speed or precision, the advanced SKS2220M model delivers superior performance on fast-moving or tiny barcodes. SKS2220 is your reliable partner for achieving Value on the Go in self-service and automated sectors.

Key Features: Flexibility, Integration, and Performance

High-Resolution CMOS (1280x1024)

Delivers International-Grade Precision Reading. Reliably reads tiny, high-density, or poor-quality barcodes (e.g., 3 mil Code-39), significantly reducing failure rates and data errors for smooth end-user operations.

High-Value Modular Design

Accelerates System Integration and Lowers Risk. Easily transforms into the SEM560M/J scanning module (shell-off), offering a plug-and-play solution for embedded applications, substantially reducing project integration time and costs.

Diverse Deployment Flexibility

Supports Embedded, Fixed Stationary, and Manual Assisted Scanning (can be picked up). A single product line fulfills various project needs, simplifying your inventory and stocking complexity.

Comprehensive Mobile Payment Support

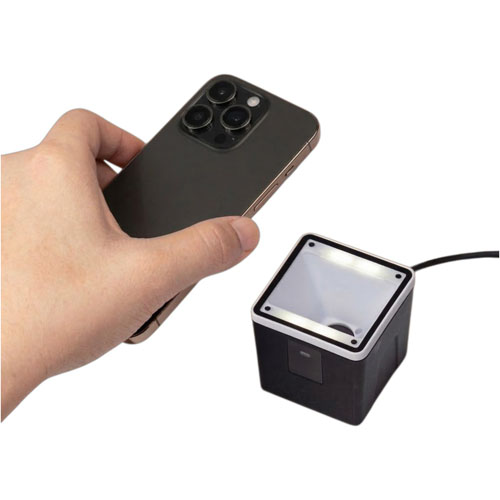

Functions as a professional QR Code scanner, quickly reading mainstream payment codes on mobile screens, ensuring your system stays current with the latest Retail and Service trends.

Flexible Choice

Dynamic Efficiency (M) or Procurement Value (J): Both models offer high-quality static reading. SKS2220M adds 3.0m/s High Motion Tolerance for high-throughput applications, ensuring zero-delay scanning; while SKS2220J provides a quality core at the most competitive price for projects with lower speed requirements but no compromise on quality.

High-Compatibility Interface

Supports USB HID (Keyboard Emulation) and USB Serial, ensuring fast and stable connectivity with various host systems, reducing complexity during on-site commissioning.

Technical Specifications

Model Name	SKS2220J
Description	Stationary Kiosk 2D Scanner
Scan Engine	2D Imager
Scan Mode	Presentation Mode
Motion Tolerance	-
Performance
Light Source	White LED
Scan Speed	60 frames/ sec
Depth of Field	13 mil UPCA: up to 280 mm 20 mil QR Code: up to 220 mm
Sensor	CMOS (640x 480 pixels)
Best Resolution	1D (4 mil): Code 39
Scan Angle
Print Contrast	≥ 30% or more
Indicators	LED & Beeper
Supported Symbologies	1D: EAN-8, EAN-13, ISBN, ISSN, UPC-A, UPC-E, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded 2D: PDF417, QR Code, Micro QR Code, Data Matrix, Aztec
Interface	USB HID (Standard), USB Serial (Upon request)
Electrical
Input Voltage	5V/DC ± 5%
Operating Current	190 mA (Max)
Physical
Dimensions (LxWxH)	52x 52x 50 mm
Weight	102g ± 5g (scanner only, without cable) 150g ± 5g (with cable, without stand)
Environmental
Operating Temperature	0°C to 50°C
Storage Temperature	-10°C to 60°C
Operating Humidity	5% to 95% relative humidity, non-condensing
Ambient Light	0-100,000 Lux (max)
Shock Resistance	1m drop
Decode Zone	Measured at 600 lux with standard barcodes (PCS ≥ 90%). Tolerance: ±10 mm. Actual DOF may vary by barcode quality and ambient factors.
4 mil Code 39	10mm - 90mm
5 mil Code 39	10mm - 120mm
13 mil UPC-A	20mm - 280mm
6.67 mil PDF417	-
10 mil DataMatrix	10mm - 135mm
20 mil QR Code	0mm - 220mm

Model Name	SKS2220M
Description	Stationary Kiosk 2D Scanner
Scan Engine	2D Imager
Scan Mode	Presentation Mode
Motion Tolerance	3.0 m/sec
Performance
Light Source	620nm Red LED
Scan Speed	60 frames/ sec
Depth of Field	13 mil EAN13: 220mm 20 mil QR Code: 200 mm
Sensor	CMOS (1280x1024 pixels)
Best Resolution	1D (3 mil): Code 39
Scan Angle	Tilt: 360° / Pitch ±60° / Skew ±70°
Print Contrast	≥ 20% or more
Indicators	LED & Beeper
Supported Symbologies	1D: EAN-8, EAN-13, ISBN, ISSN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded 2D: PDF417, Micro PDF417, QR Code, Micro QR Code, Data Matrix, Aztec
Interface	USB HID (Standard), USB Serial (Upon request)
Electrical
Input Voltage	5V/DC ± 5%
Operating Current	300 mA (max)
Physical
Dimensions (LxWxH)	52x 52x 50 mm
Weight	102g ± 5g (scanner only, without cable) 150g ± 5g (with cable, without stand)
Environmental
Operating Temperature	0°C to 50°C
Storage Temperature	-10°C to 60°C
Operating Humidity	5% to 95% relative humidity, non-condensing
Ambient Light	0-70,000 Lux (max)
Shock Resistance	1m drop
Decode Zone	Measured at 600 lux with standard barcodes (PCS ≥ 90%). Tolerance: ±10 mm. Actual DOF may vary by barcode quality and ambient factors.
4 mil Code 39	10mm - 90mm
5 mil Code 39	10mm - 110mm
13 mil UPC-A	10mm - 220mm
6.67 mil PDF417	10mm - 110mm
10 mil DataMatrix	10mm - 100mm
20 mil QR Code	10mm - 200mm

Applications & Benefits: Where Value on the Go Works

Market	Specific Use Case	Benefit
Retail	Price Checkers & Vending Machines Mobile Payment at POS	Streamlined Transactions: Enables quick self-service and payment processing. Benefit: Reduces queue times and lowers labor costs for retailers.
Access Control	Ticket Readers & Turnstiles Automated Gate Verification	High Throughput Security: Fast reading of paper or mobile tickets ensures smooth entry flow. Benefit: Prevents congestion at entry points and enhances visitor experience.
Warehousing	Document Processing Stations Fixed-point Package Scanning	Operational Fluidity: Hands-free mode allows staff to handle paperwork and goods simultaneously. Benefit: Increases daily processing volume and reduces manual handling time.
Manufacturing	Assembly Line Tracking (SKS2220M) Micro Component Verification	Precision & Speed: SKS2220M's ability to read moving and tiny codes ensures accurate logging. Benefit: Reduces production errors and improves traceability of small parts (TCO reduction).
Logistics	Automated Label Verification Conveyor Scanning (SKS2220M)	Automated Reliability: High motion tolerance (M model) captures data on moving lines accurately. Benefit: Minimizes mis-sorts and manual rework, enhancing overall logistics efficiency.
Healthcare	Laboratory Specimen Tracking Pharmacy Dispensing	Critical Accuracy: Reads high-density 3-mil codes on small vials reliably (M model). Benefit: Ensures patient safety through accurate medication and sample verification.

The Smart Integrator's Choice

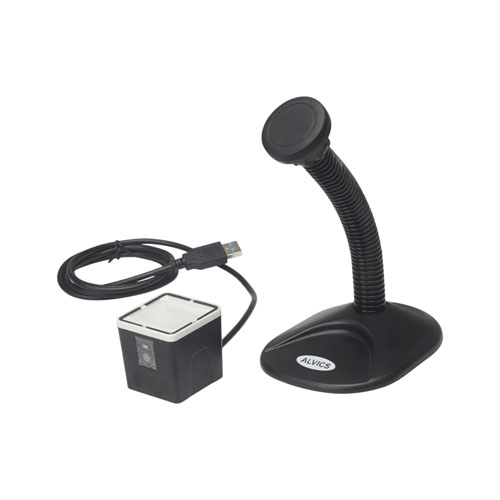

The SKS2220 Series offers the perfect balance of ease of integration and scanning performance. Whether you need a standard model for a price checker or the advanced SKS2220M for high-speed manufacturing lines and micro-barcode reading, this series adapts to your needs. With its modular design, magnetic stand, and screen reading capabilities, the SKS2220 maximizes efficiency and delivers true Value on the Go for any self-service or fixed-scanning application.

Stop compromising between performance and price.

Choose the SKS2220 Series to ensure your projects deliver a high-quality user experience with the most competitive value!

👇 Ready to streamline your Kiosk and fixed scanning integration? Fill out the Inquiry Form and contact us today to find the perfect model for your project!
